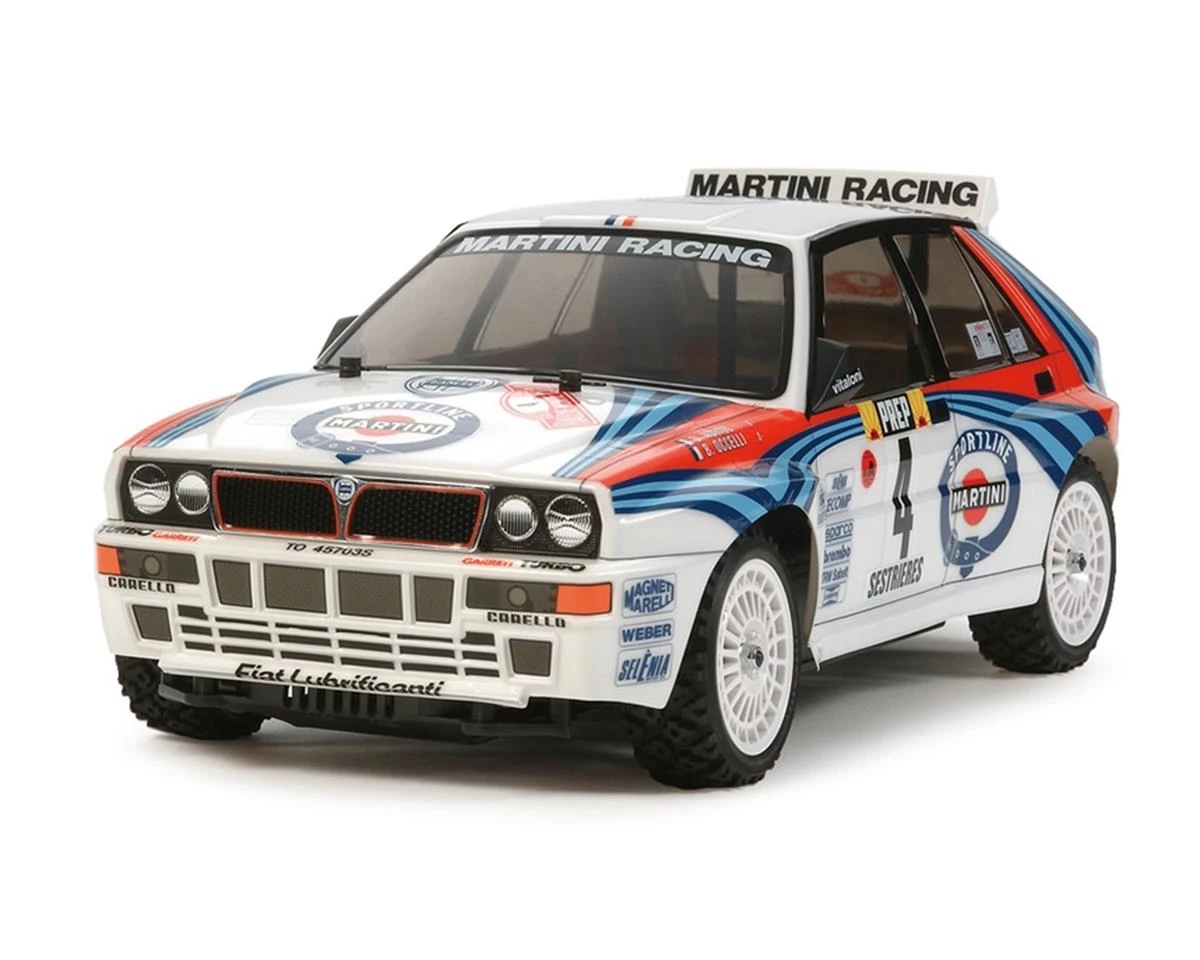

Tamiya 1/10 Lancia Delta Integrale 4WD Rally Car Kit (XV-01)

The Lancia Delta Integrale, which has made a number of appearances on various Tamiya chassis platforms over the years, now makes its home on the XV-01 chassis. The Lancia Delta Integrale was a legendary Rally warrior, as fans of the sport are sure to remember, as it won 6 titles back-to-back at the end of the 1980s and start of the 1990s.

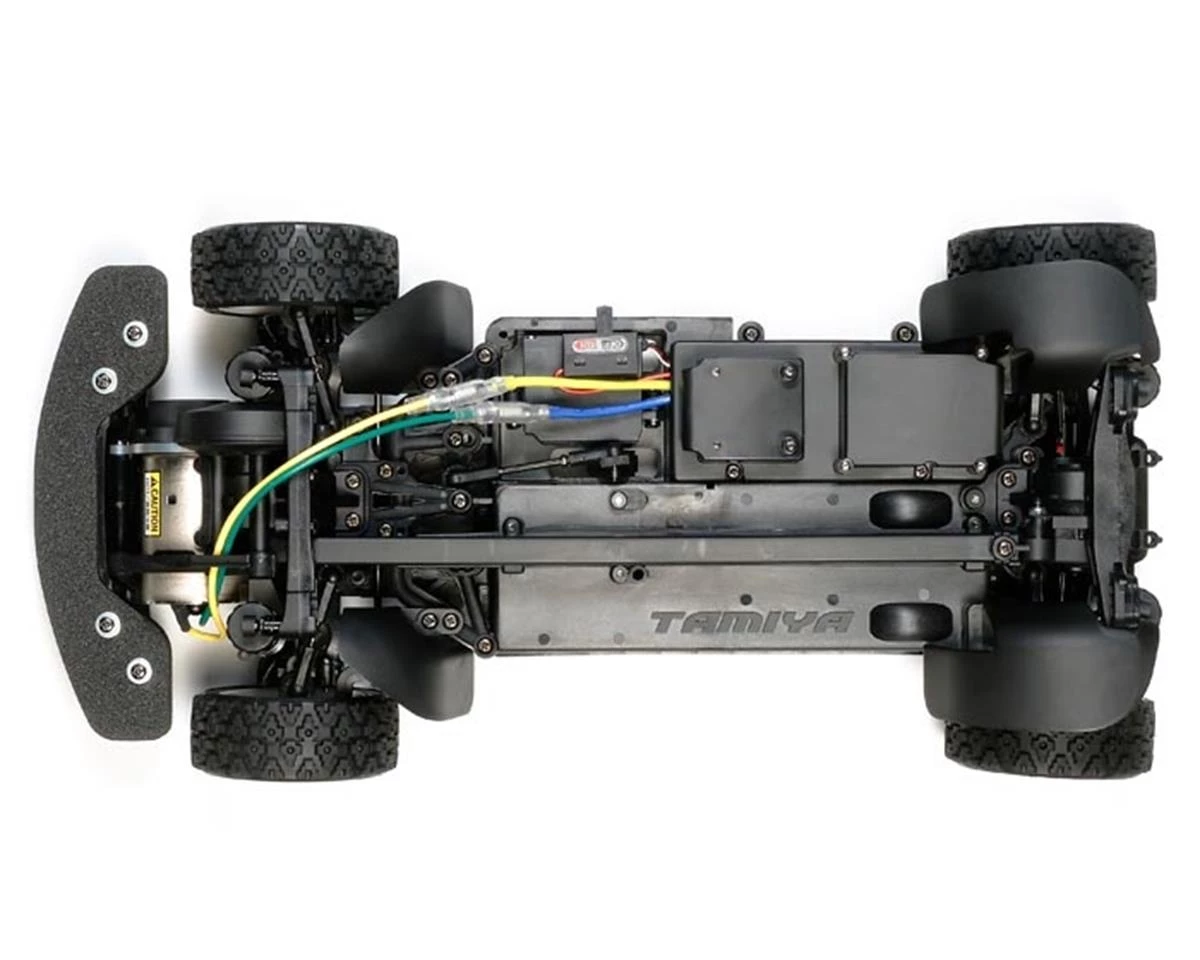

The 4WD XV-01 chassis offers dynamic R/C rally driving on both tarmac and gravel surfaces. It features a front-motor, belt-driven 4WD layout with front and rear enclosed gearboxes equipped with gear differential units. The box-like main frame incorporates covers and wheel well liners to provide superb protection against dirt and debris. The 4-wheel double wishbone suspension ensures plenty of suspension stroke and ground clearance and is matched with Rally Block Tires on replica wheels for realistic handling.

Features:

• Dust covers for debris protection for radio gear
• Front-mounted motor is housed in a gearbox which has been designed for ease of maintenance
• Radio gear components are protected by covers that are secured by screws
• A hatch on the underside of the XV-01 chassis enables quick access to the battery
• Holes in the chassis bottom help remove any debris which may block steering movement during off-road use
• Reversible-type rear suspension ensures plenty of suspension stroke for off-road driving
• The separate suspension mounts makes it easy to change settings such as toe angle

Specifications:
Scale: 1/10
Construction type: assembly kit
Terrain use: multi-purpose
Drive-train: 4WD
Drive type: Dual-Drive
Drive line: dog bone
Differential type: gear

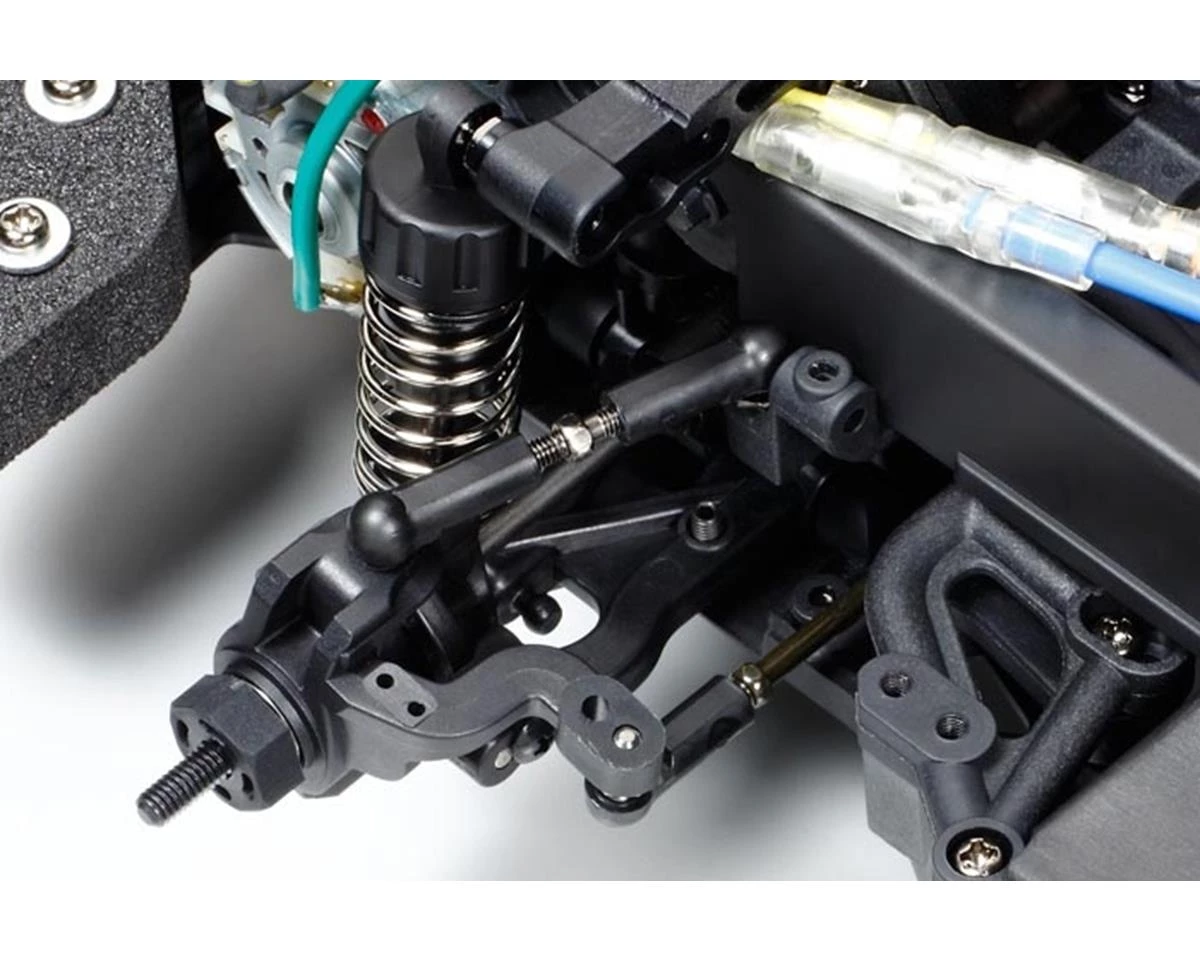

Suspension: fully independent double wishbone
Steering mechanism: bell-crank
Shock damper: oil-filled damper
Shock damper material: plastic
Tire type: rubber
Tire tread: rally block
Body material: Polycarbonate
Chassis material: plastic
Electronic Speed Control (ESC): not included
ESC model: n/a
LED Light buckets: no
LED lights: no
Motor: 540-brushed type
Bearings: shielded ball bearing
Adjustable camber: yes
Adjustable toe angles: front and rear
Adjustable ground clearance: yes
Adjustable gear ratio: yes
Adjustable wheelbase: fixed
Adjustable track width: fixed
Adjustable shock angle: yes

Needed To Complete:

• 2-Channel radio gear & electronic speed control
• 7.2V 6-Cell NiMH Battery & Compatible Charger
• Polycarbonate paint (for body)
• Steering Servo

This product was added to our catalog on May 22, 2018
