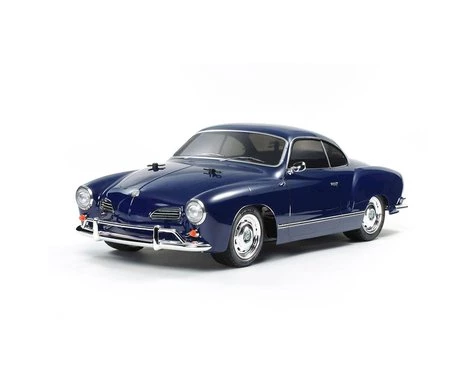

Tamiya 1/10 Volkswagen Karmann Ghia 2WD On-Road Kit (M-06 Chassis)

The Tamiya 1/10 Volkswagen Karmann Ghia 2WD On-Road Kit recreates a true classic in the form of the Volkswagen Karmann Ghia. The Karmann Ghia was a stylish coupé based upon the same platform as the legendary Beetle. Its body was designed by Italian firm Ghia and manufactured by the German company Karmann. The polycarbonate body in this replica sits on top of the Tamiya RWD M-06 chassis.

The M-06 chassis features a rear-mounted motor, rear-drive setup and features a longitudinally-mounted battery pack, with R/C equipment positioned on either side for optimum balance and a low center of gravity. 4-wheel double wishbone suspension uses metal-plated wheels, equipped with 60D radial tires at the front and 60D super grip tires at the rear. In addition, a 3-piece steering linkage offers nimble handling response. A large bumper is included.

• 1/10 scale R/C model assembly kit
• Lightweight and durable polycarbonate body with separate plated side mirror, bumpers and light cases
• Includes marking stickers, and window masking stickers for use during the painting process
• The M-06 chassis features a rear-motor, RWD setup with a longitudinally-mounted battery pack and R/C units positioned on either side for optimum balance and a low center of gravity
• Utilizes the 239mm wheelbase M-06L chassis
• Metal-plated wheels paired with front radial and rear super grip radials for superior stability and sharp handling
• A host of Hop-Up Option parts are available to customize the chassis to your driving needs
• Includes Tamiya 540-motor
• Includes Tamiya TBLE-02S ESC (electronic speed control) Capable of running sensor brushless motors and brushed motors alike (21.5 Turn BL motor limit) (23 Turn brushed motor limit)

Servos: High-speed steering servo required

Vehicle Type: On-Road

Body: Clear polycarbonate

Drivetrain: 2WD

Length: 410mm

Width: 182mm

Height: 125mm

Wheelbase: 239mm

Suspension: Four wheel double wishbone

Motor Size: 540

Shock Type: Plastic body friction (not oil-filled)

Wheel Type: Chrome finish plastic

Brakes: Integral with ESC

Max Battery Dimensions: 132 x 45 x 23mm

Speed Control: Tamiya TBLE-02S

Water-Resistant: No

Chassis: M-06L long wheelbase, molded plastic bathtub style

Scale: 1/10

Completion Level: Kit

Pinion: 20T

Differential: Planetary gear

Motor Type: Brushed

Tire Tread: Front radial, rear super grip

• 2-Channel radio
• Steering servo
• 7.2V – 7.4V stick pack with Standard connector
• Compatible charger
• Polycarbonate Paint
• Tools for assembly
