Tamiya Audi Quattro Rallye AZ 1/10 4WD Electric Rally Car Kit (TT-02)

The Tamiya Audi Quattro Rallye AZ TT-02 1/10 4WD Electric Rally Car Kit is a 1/10 scale replica of the iconic Rally Race Car that made its mark in the 1980’s. Tamiya’s 1/10 scale radio control replica brings rally racing fun to hobbyists on the adaptable and easy-driving TT-02 chassis. This specific kit includes a Hobbywing THW-1060 Brushed ESC for incredible performance.

TT-02: Adaptable, Balanced Shaft Driven 4WD

The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports.

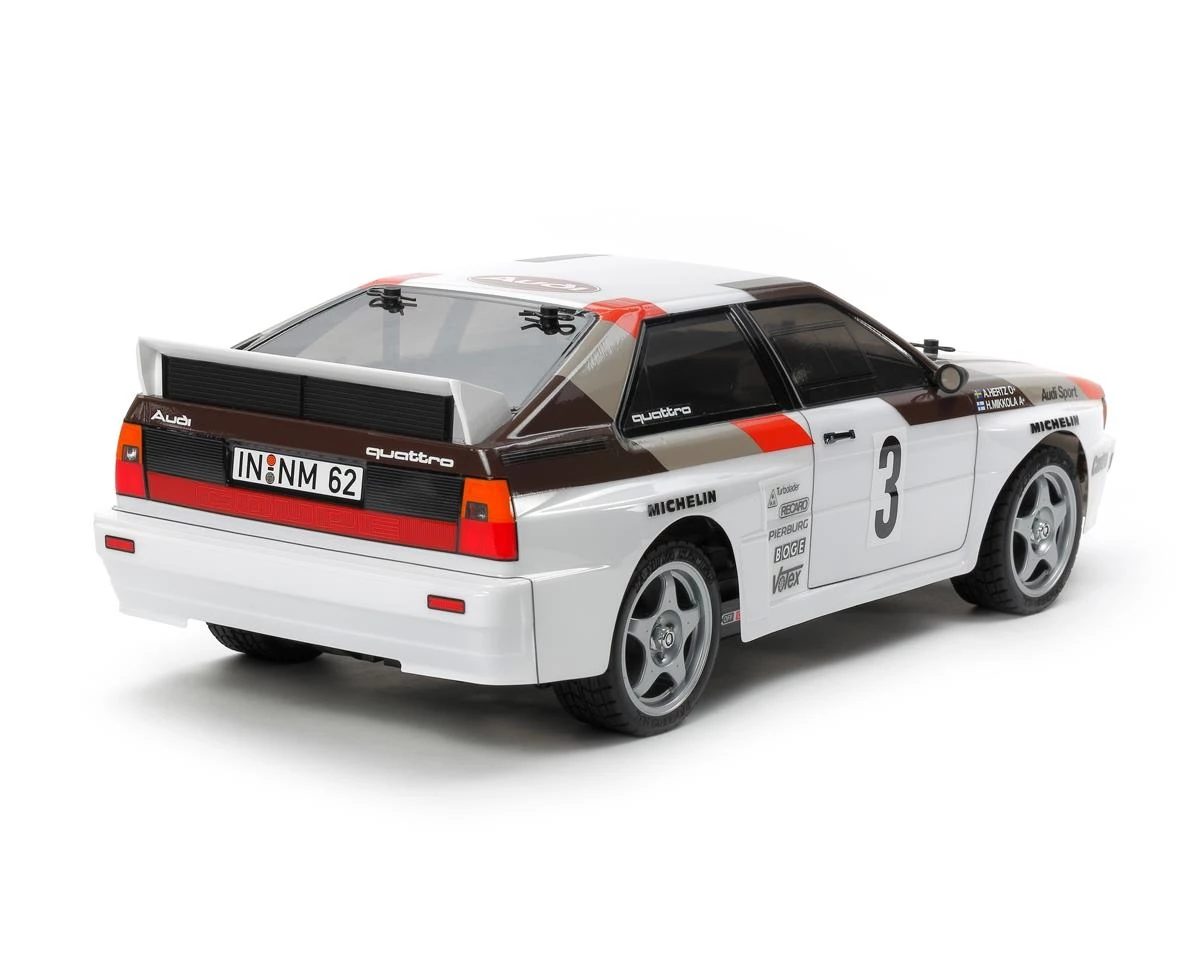

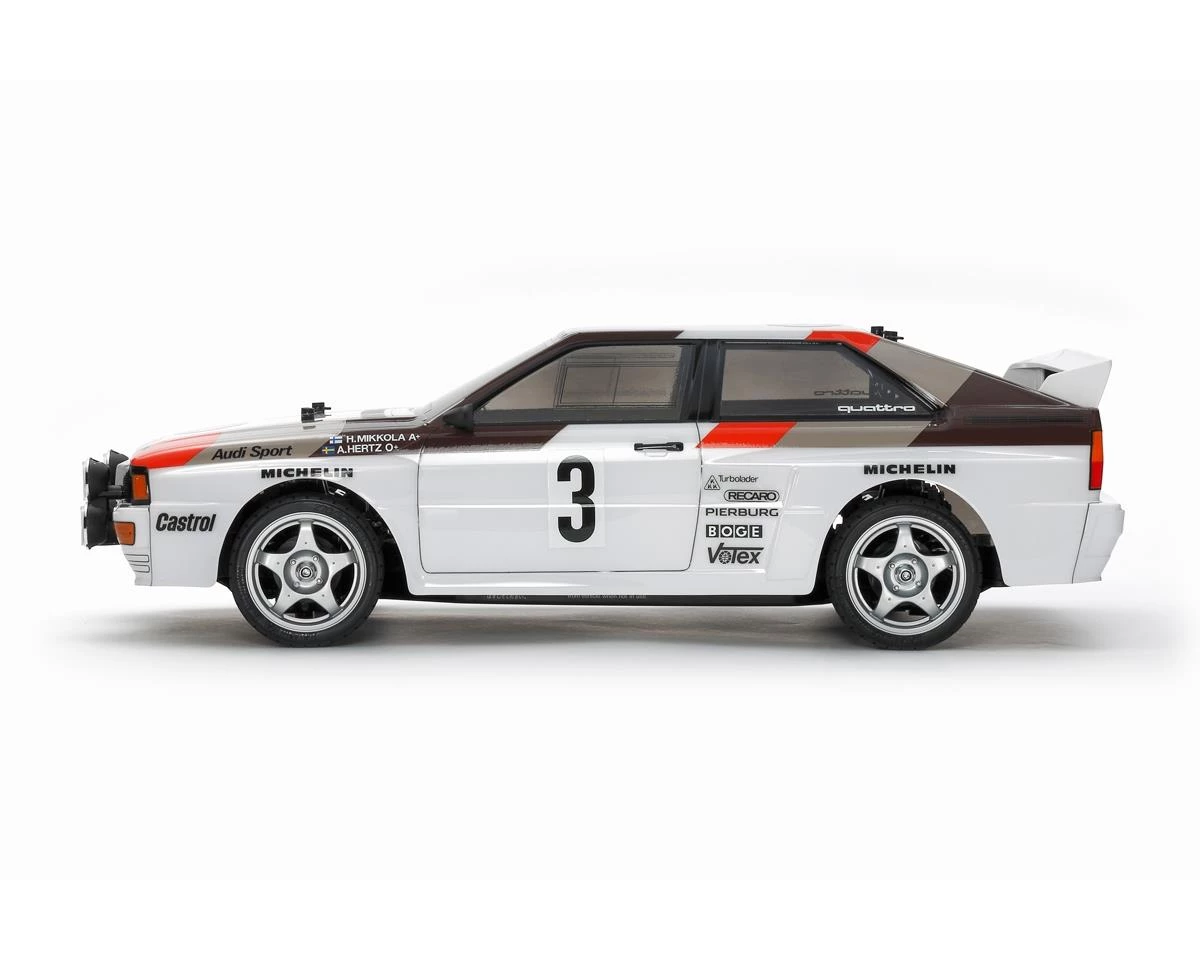

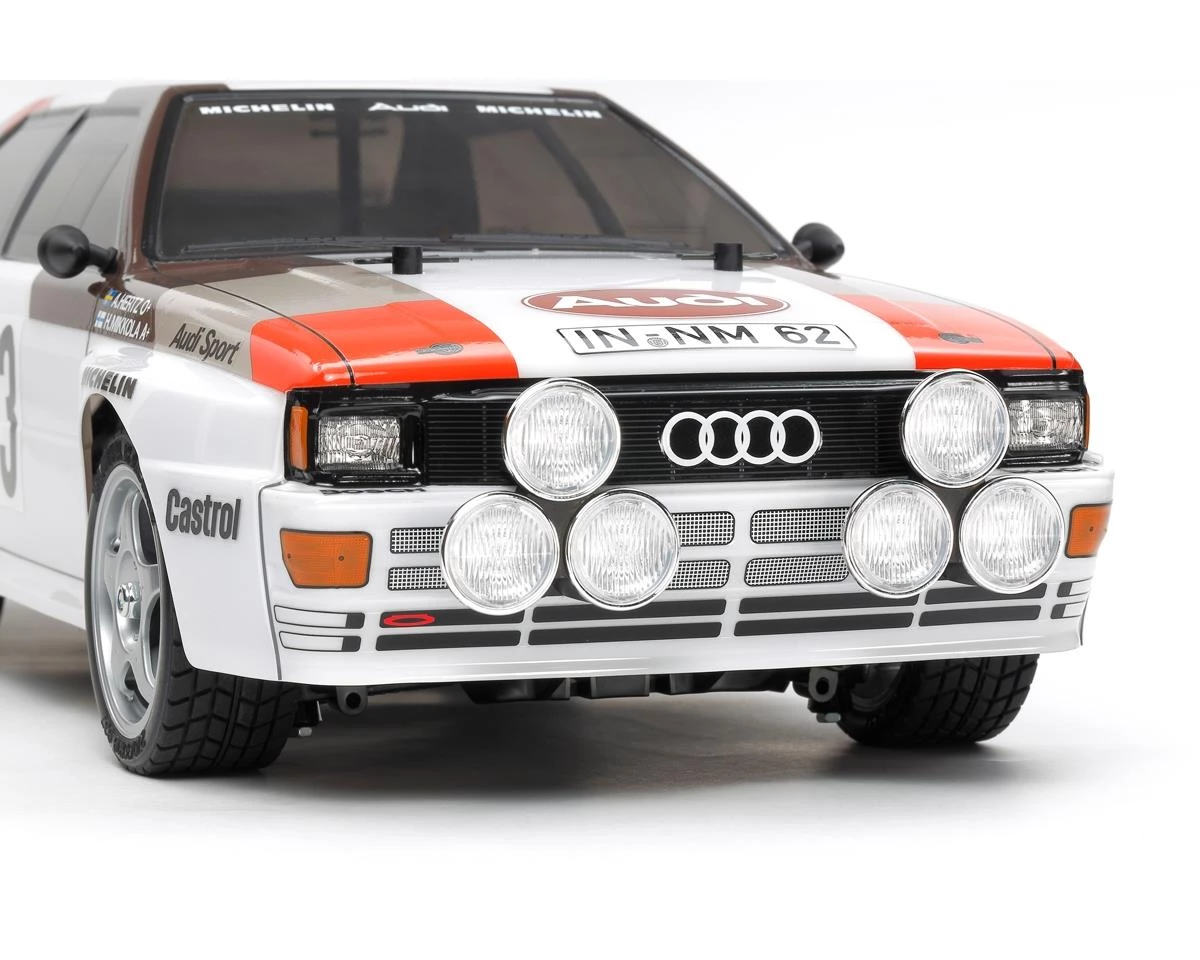

NOTE: Finished kit shown in photos is for illustrative purposes only. This is a kit that requires assembly. See needed to complete list below for a list of items required to complete the model.

• 1/10 scale R/C model assembly kit
• A2 body is molded accurately in durable polycarbonate
• Features separate metal-plated ABS parts for front and rear light cases, plus fog lamps. Side mirrors, wing and wing caps are molded in white ABS.
• Light cases are compatible with separately sold LEDs; fog lamps are not
• 5-spoke wheels are molded in silver, and paired with racing radial tires
• The TT-02 chassis is an adaptable and balanced design with excellent stability, plus features such as identical suspension arm and upright components for ease of assembly
• 4-bevel differential gears and 4-wheel double wishbone suspension
• Includes a Hobbywing THW-1060 Brushed ESC
• An extensive TT-02 option parts line-up offers a number of opportunities to tune your car

Length: 458mm

Width: 187mm

Adjustable Gear Ratio: Yes

Bearings: Plastic bushing

Body Material: Polycarbonate

Body Stickers: Included

Chassis Material: ABS Plastic

Chassis Type: TT-02

Construction Type: Assembly Kit

Differential Type: Gear

Drive Type: 4WD

Scale: 1/10

Shock Damper: Friction type

Suspension: 4-wheel fully independent double wishbone

Terrain Use: On-Road
